A condensate safety switch is a small device that automatically shuts your air conditioner off when water backs up in the drain pan. It is also called a float switch or AC safety switch. It prevents a clogged condensate line from overflowing and flooding your ceilings, walls, and floors. Most switches sit on the drain pan or the secondary drain port, and when the float rises, the switch cuts power to the system until the water drains.
In the warm summer months, the HVAC system works extra hard to convert the warm air into fresh cool air for the inside of your home and business. As the air conditioner chills the outside air, condensation forms and is exposed by either a drain line outside where it drops into with the help of gravity, or to a condensate pump.
Whichever way your system is set up based on its location or its installation pieces, the water has to drain somewhere. If the condensation drip ever got clogged and the water had nowhere to go, it could lead to a flood, causing damage to your system and your ceiling as well.
In this article Alpha Mechanical, a Fair Oaks HVAC contractor serving the Sacramento area, covers a solution called a condensate overflow switch which answers to the potential flooding and damage issues. Sometimes it is hard to choose the right switch for your HVAC system and we will discuss the basics of the safety switch and their applications.
Key Takeaways
- A condensate safety switch shuts the AC off when water backs up in the drain pan, before it overflows into ceilings and walls.
- It mounts at the primary drain pan or the coil's secondary drain port, on the drain line, or at the secondary drain pan.
- In California, the Mechanical Code requires a backup wherever overflow could cause damage, and a shutoff switch is one of four allowed options.
- Have the switch and the condensate drain checked at every tune-up.
What is a Condensate Safety Switch?
You may be wondering how does condensate safety switch work? Let’s break it down. Overtime when slime, algae, mildew and/or bacteria accumulates in your system, clogged condensate drain line and eventually block the water from draining properly. A clogged drainpipe can create a dangerous mechanical problem for the air conditioner the longer it goes unaddressed.
If your indoor unit is installed horizontally in your attic, there may be an auxiliary overflow pan to catch any condensation drip if the main condensate line is backed up. If it doesn’t have the secondary tray or if the auxiliary line becomes blocked, the water will eventually overflow causing damage to your floors, sheetrock, walls, and ceilings of your Sacramento home. By the time you notice a leak in an indoor unit, whether it’s been installed vertically or horizontally, the work will be both extensive and expensive to repair. This is not just good practice. In California, the 2025 California Mechanical Code, Section 310.2 requires a backup wherever condensate overflow could cause damage, and a water-level shutoff switch is one of the allowed options, as the drain pan section below explains.
This is where the air conditioner safety switch comes into place. A condensate switch is a device that automatically shuts off your AC when condensation and moisture is detected at a certain level in your drain pan. A safety switch on AC unit can prevent a leak from happening after a signal is sent to the compressor unit to turn off. Now since ac compressor is not turning on, this will bring the dripping to a halt as condensation will no longer form in the unit.

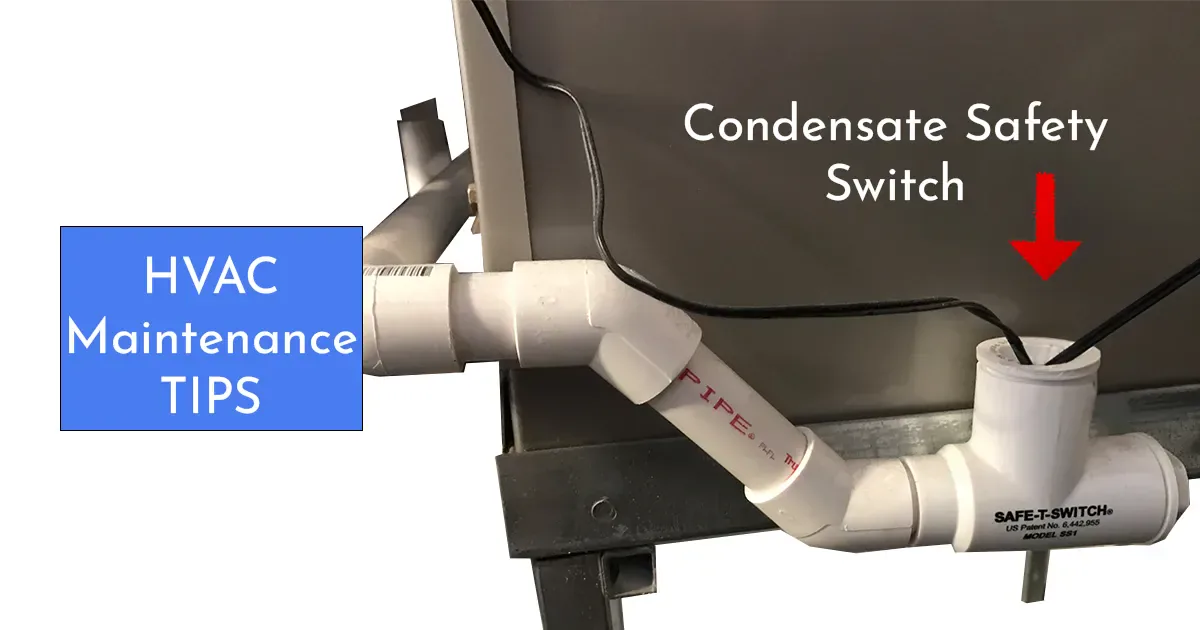

A condensate safety switch is mounted on the side of your drain pan or directly on your secondary drain port on the evaporator coil. There’s a float inside the switch that will rise if the water level of the pan fills up, notifying you that there is an alarming amount of water that has built up. The switch sits in the low-voltage (24V) safety circuit. At a normal water level the switch is closed, so the circuit is complete and the system runs. When the drain pan fills and the float rises, the switch opens, breaking the circuit and shutting the system down until the water drains. A tripped switch is one of several reasons an air conditioner stays off when the thermostat calls for cooling.
Why is a Condensate Safety Switch Important?
-
Prevents a leak and overflow: Little to no moisture will accumulate in the drainage system because your system will be signaled to turn off once any condensation drippings trigger it.
-
Saves money on costly home repairs: This device prevents any costly catastrophes of flooding, sheetrock, or unit to have to be replaced unnecessarily by water that could have been avoided.
-
Provides 24 hour water damage protection in your attic, closet or garage ensuring that your secondary drain pan does not fill up with water.
-
Peace of mind: Sleep comfortably on those warm California nights knowing that your AC will not become ruined by water damage.
What Are the Different Types of Condensate Safety Switches?
Although there are many brands and variations of switches, they generally fall under two HVAC safety switch categories which are float or sensor. Both of them are prevention devices that provide protection for your HVAC unit.
Float Switches
A Float Switch is an ac safety switch that trips on when the water level reaches a certain point and sends a message to your AC unit to shut off. An HVAC technician will then be able to come in and find the source of the issue before any flooding takes place.
Sensor Switches
A Sensor Switch automatically turns your AC off once a few drops of water are detected. The couple droplets of water activate the switch to prevent any water damage, leaks or clogs. Switch installation can be on the inside or outside of the drain pan.
| Switch type | What trips it | Where it mounts |
|---|---|---|
| Float switch | Water rising to a set level | In the drain pan or on the secondary drain port. |
| Sensor switch | A few drops of water at the sensor | Inside or outside the drain pan. |
We are here to serve our community!
See the Sacramento area we serve.
Tips and Tricks for Installing a HVAC Safety Switch
There are three primary locations where an AC system safety switch can be installed including the primary drain pan, secondary drain pan or the drain line. While installing a condensate switch on the primary drain may be sufficient for your home, depending on the size and location of your unit, you should consider having more than one backup.
For example, it is important to consider having a condensate switch connection on more than one of your drain pans to collect any water that overflows from the primary drain pan inside the AC. Having this additional protection will ease your mind.
Primary Drain Pan

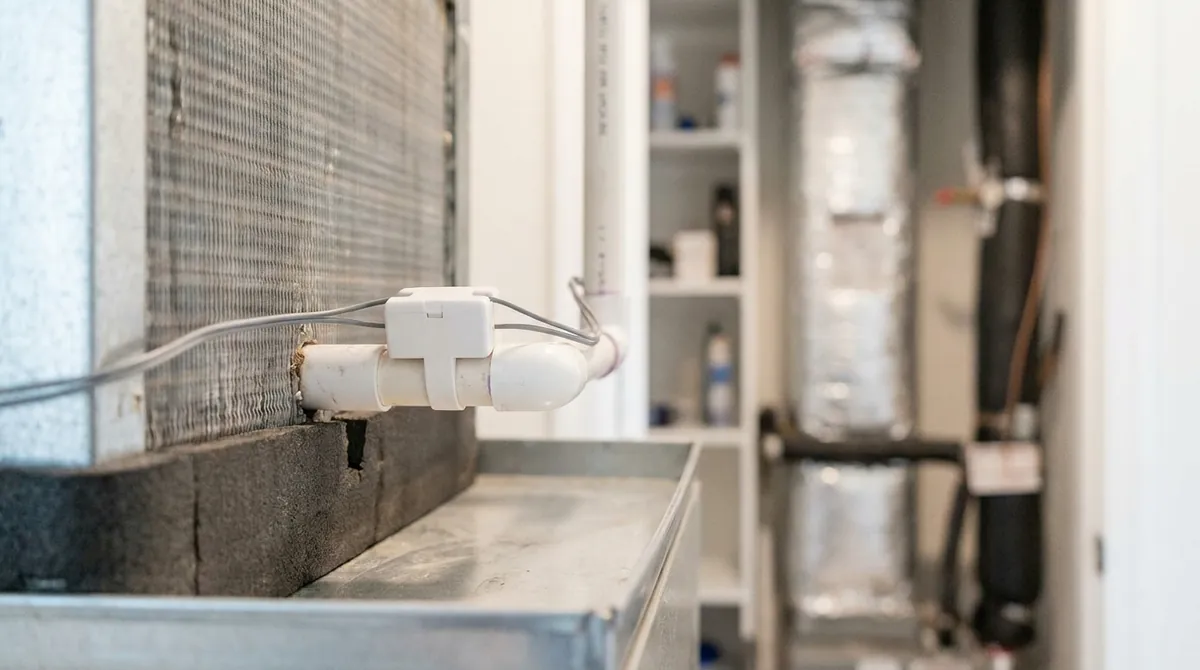

Your Primary Drain Pan sits inside the air handler and your switch can be attached to the horizontal drain line coming from the main port. You can also install it in the secondary port (different from the secondary drain) or wherever space most clearly allows.
Secondary Drain Pan
The Secondary Drain Pan is there to be reinforcement in case the primary drain pan fails to hold the excess water due to any clog or other reason. Installing a switch on the secondary pan will provide another layer of protection for your HVAC unit and home.
These switches shut off the system immediately and can be installed inside drain pans or be placed on the floor near your secondary pan for backup of any flood issues or water damage occurring.
Where Is the AC Drain Pan, and Why Is There Water in It?
Where the pan sits depends on the indoor unit. In an attic air handler lying on its side, a common Sacramento setup, the primary pan sits under the cooling coil inside the cabinet and a secondary pan sits under the whole unit. With a gas furnace, the cooling coil mounts on the furnace's air outlet, so on an upflow furnace the coil and its pan sit directly on top (Trane Technologies coil guide).
Where an overflow could cause damage, the 2025 California Mechanical Code, Section 310.2 requires a backup. The four options are a water-level switch that shuts the equipment off, an extra pan with its own drain, a second drain line set higher than the primary, or an extra pan with a shutoff switch. Any backup drain must end where it is readily observed.
Water standing in the secondary pan, or dripping from that backup drain, means the primary side has failed. The usual reasons are a plugged primary drain, a primary pan that has corroded or cracked, or a condensate pump that has stopped.
What you can safely check:
- Set the thermostat to off so the coil stops making water.
- Look at the secondary pan only from a floored part of the attic, and check whether the backup drain is dripping.
- Replace a dirty filter. Restricted airflow can freeze the coil, and the melting ice can overwhelm the pan.
- If a condensate pump sits next to the unit, confirm it is plugged in.
- Clear a clogged line only from its outdoor end. With the AC off, Carrier recommends a wet/dry vacuum there to pull out the buildup, and a technician instead if you are not sure which pipe is the condensate drain (Carrier).
Never bypass or remove the float switch. A rusted or cracked pan, a clog you cannot clear from the outdoor end of the line, a failed pump, or a coil that is not sitting level needs a technician.
Which Condensate Switch Should I Use?
The condensate drain switch (or multiple switches) you need will depend on a number of factors including the location and orientation or the air handler as well as your preference of protection.
A certified technician will be your best resource in determining the proper installation location. To learn more about condensate switches for your Sacramento home, along with other condensate management products from pumps to drain pans to treatments, reach out to the Alpha Mechanical Sacramento HVAC services team.
How Do You Maintain an HVAC Safety Switch?
Among the critical components of HVAC systems are safety switches, which protect against hazardous flooding. To ensure the efficiency and safe operation of your unit, safety switches and proper maintenance are vital. Here are some essential guidelines to follow:
Regular Inspection
Conduct routine inspections of HVAC safety switches to check for any signs of wear, damage, or loose connections.
Cleaning
Keep the switches free from dust, debris, and contaminants that can accumulate over time. Use a soft brush or cloth to gently remove any buildup, ensuring unobstructed functionality.
Professional Maintenance
Consider scheduling professional maintenance for HVAC safety switches. HVAC tune-up in Sacramento includes inspection of these safety switches as well as the overall health of your unit. Certified technicians can perform comprehensive inspections, testing, calibration, and servicing, ensuring optimal performance and longevity.
By following these maintenance practices, you can help boost the longevity of the devices. Regular inspections, cleaning, testing, calibration, and professional maintenance will contribute to the reliability of these safety switches, ultimately enhancing the overall performance and safety of your HVAC system.
Call Us With Confidence!
Final Thoughts
An HVAC safety switch is the perfect addition to your HVAC unit to save money, prevent leaks and give you peace of mind. These switches signal your unit before the water damage takes place. When one trips, it tells you water is sitting in the pan before it can seep through the ceiling. ENERGY STAR's maintenance checklist also lists checking the condensate drain, because a plugged drain can cause water damage in the house. You can read more about us on our guarantee and rates page, or contact us to have the switch tested at your next tune-up. Regular maintenance will uphold the stability of the unit and provide the longevity necessary to get you by comfortably summer after summer.
Having a condensate safety switch will afford you to have comfort knowing that there will be no accidental or avoidable flood damage happening to your unit and home in the summertime. AC repair in Sacramento is a costly expense especially when it involves the insulation or walls in your home.
Frequently Asked Questions
What is a Condensate Switch?
A condensate safety switch is a device that shuts your air conditioner off if the condensation that forms on the coils has nowhere to drain off due to blockage or a clogged drain pipe.
Where does a technician install the condensate switch?
Generally the AC safety switch can be installed at the primary or secondary drain pans (or both) where the condensation drips can be caught to signal an emergency shut off of your unit.
Do I need an HVAC safety switch if my home is located in the Sacramento area?
In the California region, it is more important to be safe than sorry. A clogged drain line can happen in any area that uses their air conditioner for the warm summer months.
Sources
- IAPMO, 2025 California Mechanical Code, Section 310.2 "Condensate Control", epubs.iapmo.org (retrieved 2026-10-06). California enforces the CMC, not the International Mechanical Code
