When it comes to HVAC systems, where is the HVAC filter located? The location of the HVAC filter will depend on the type of HVAC system and its assembly, and it can vary depending on the specific design and configuration of the system. Listed below is a common central air filter location for each system type:

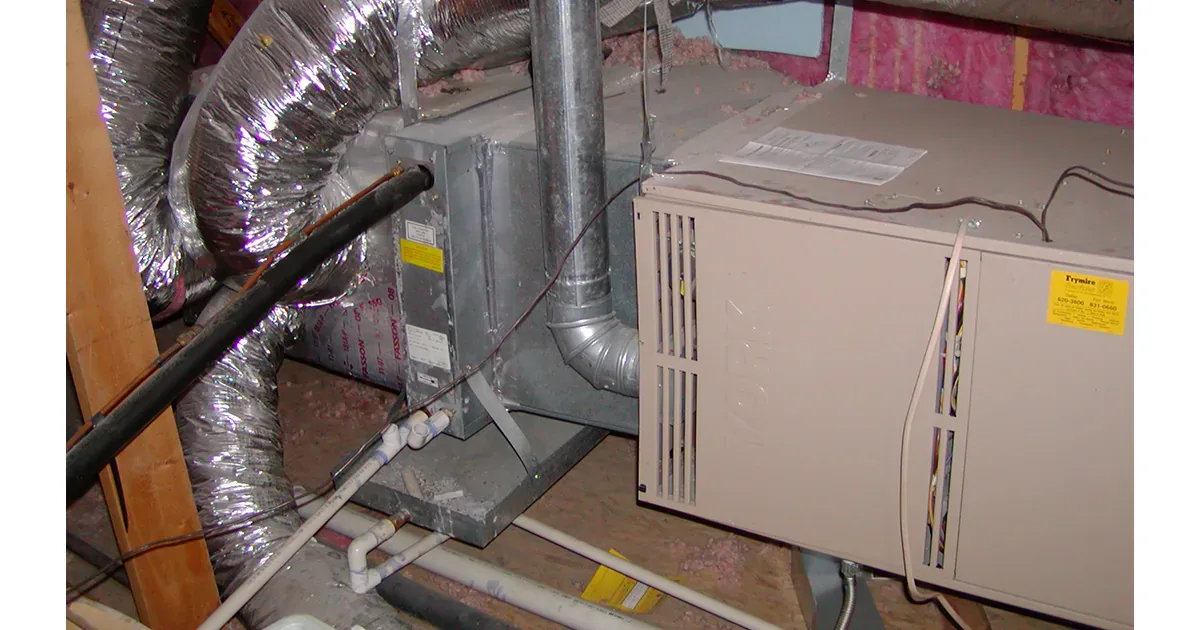

HVAC filter located in horizontal units
Commonly found in attics, basements, and garages, the air filter often sits within a slot on the air return side of the unit.

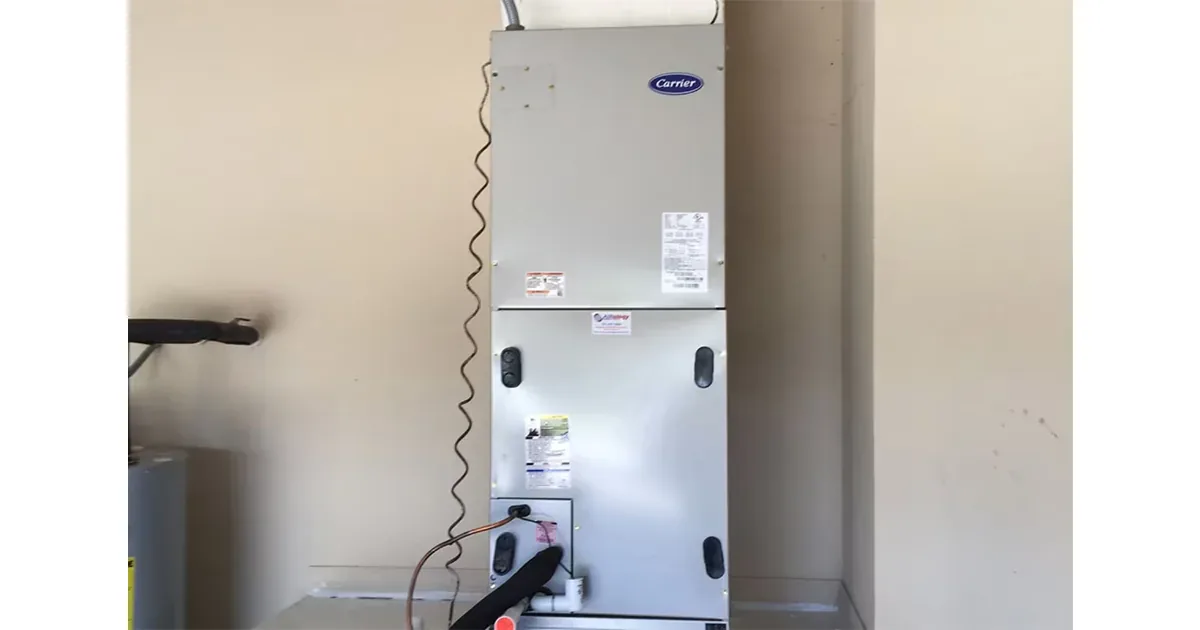

HVAC filter located in vertical units
Vertical units are most often found in utility closets, garages, tall attics, or basements. The air filter can be found behind a grille on the bottom or front of the unit.

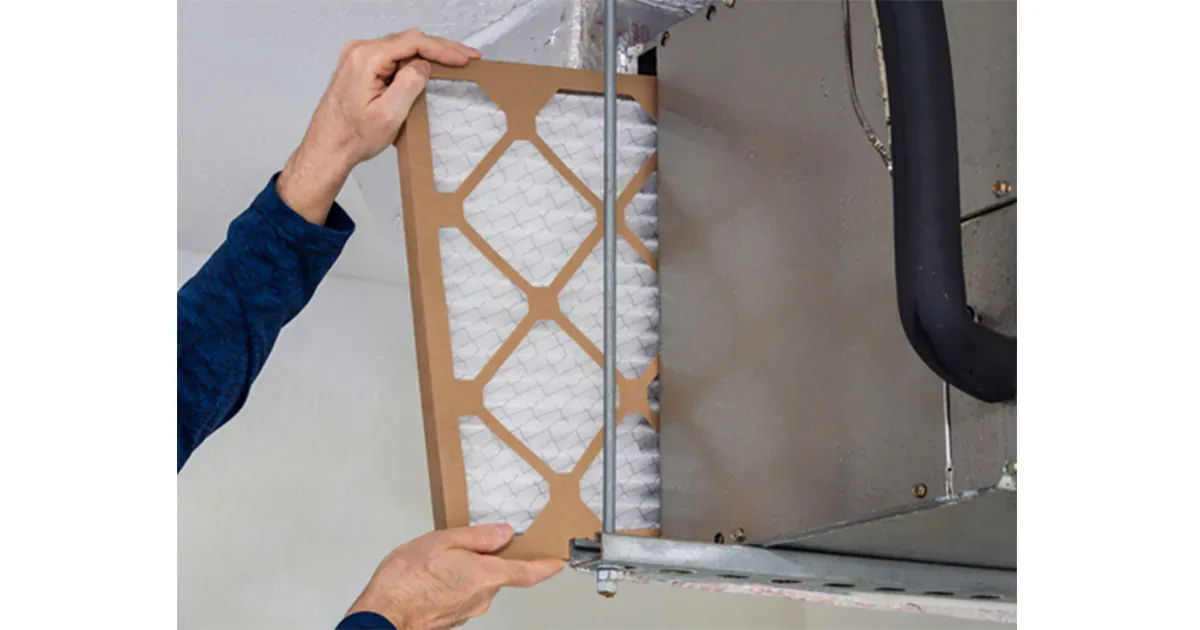

HVAC filter located in furnaces
Furnaces will usually have a dedicated compartment for the air filter, most commonly found near the blower motor.

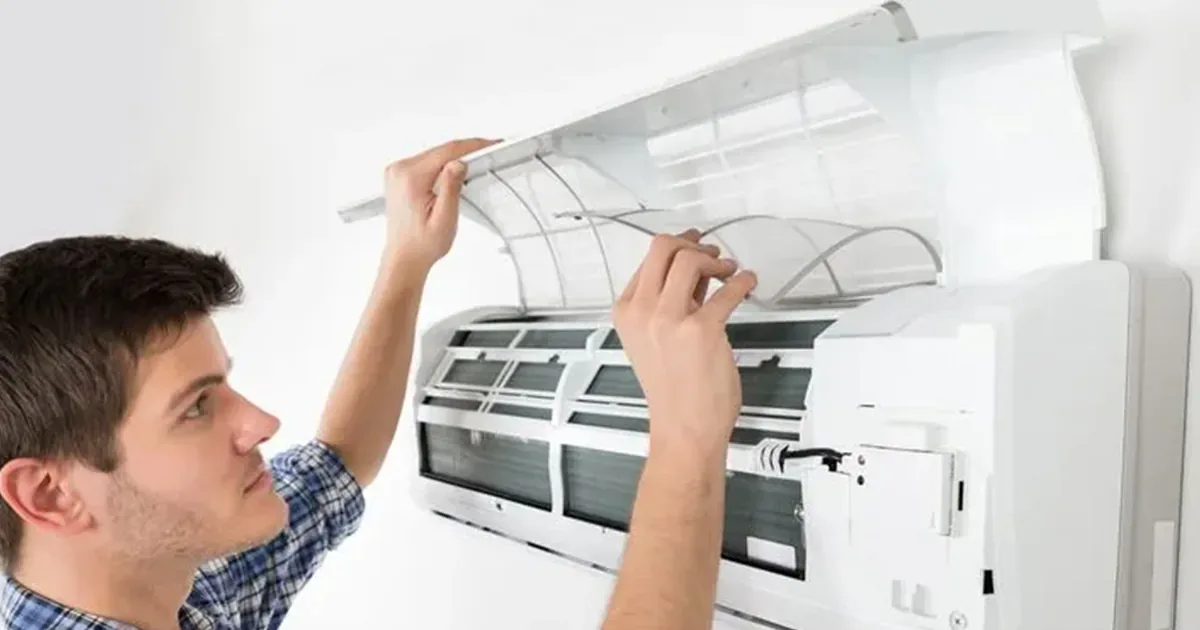

HVAC filter located in mini-split systems
Mini-split systems will often have an air filter on each individual unit. Whether wall or ceiling mounted, opening the cover of the individual units should reveal the filter.
Key Takeaway when working with HVAC Filters
1. Locate your HVAC Filter Housing
2. Turn off your HVAC at the Thermostat Level
3. Filter can be located on the ceiling, in the wall, or on HVAC system itself
4. Air handler filters, also known as furnace filters, are single filters closer to the furnace itself as part of the blower.
5. If the air filter is located inside the air handler, ensure that the filter is installed with the air flow arrow pointing towards the blower. This ensures optimal performance according to the filter manufacturer’s design.

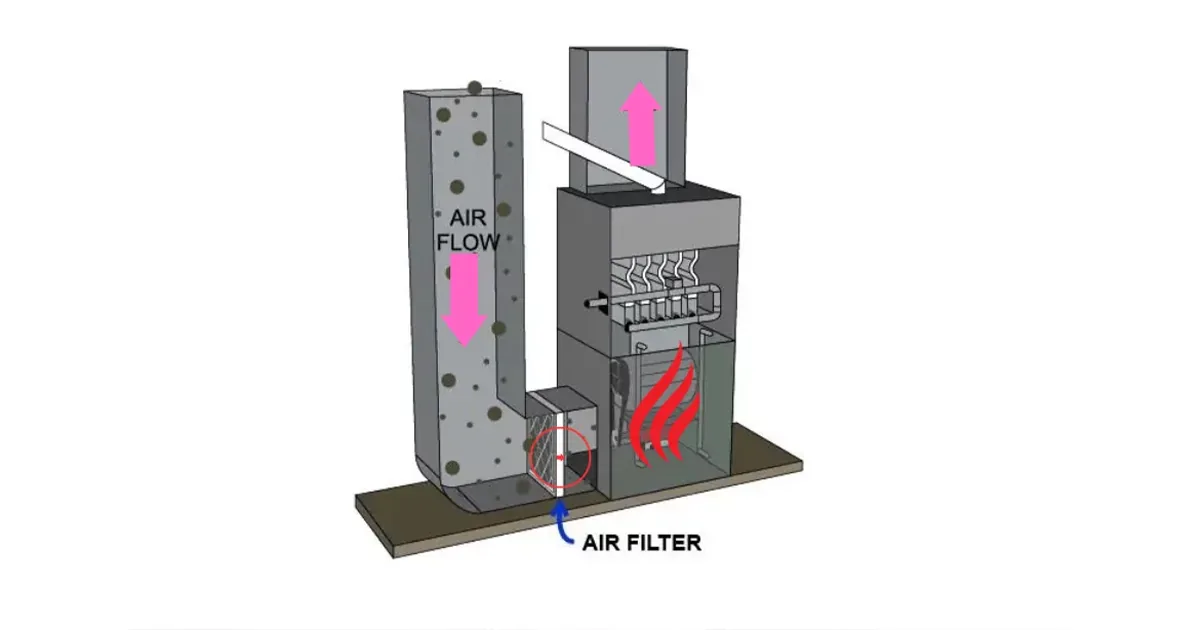

Tired of dust bunnies dancing around your home?
Give your lungs a high-five by replacing your grimy air filter! Fresh air, lower energy bills, and a happy HVAC system? Sounds like a win-win-win to us!
Final Thoughts
So, where is my HVAC filter? In conclusion, the HVAC filter location depends on the type and model of the HVAC system. Use the notes above to inspect your system and locate the filter.
It is recommended to replace the filter every 3-6 months, depending on factors like air quality, filter quality, home occupancy, and more. For more extensive work like HVAC tune-up Sacramento style, Alpha Mechanicals are the go-to guys!
You can easily replace your own air filters if you find the HVAC air filter location, but for more intensive HVAC needs, don’t hesitate to ask a professional for help!
